HEAT SETTING machine for TUBULAR FABRICS

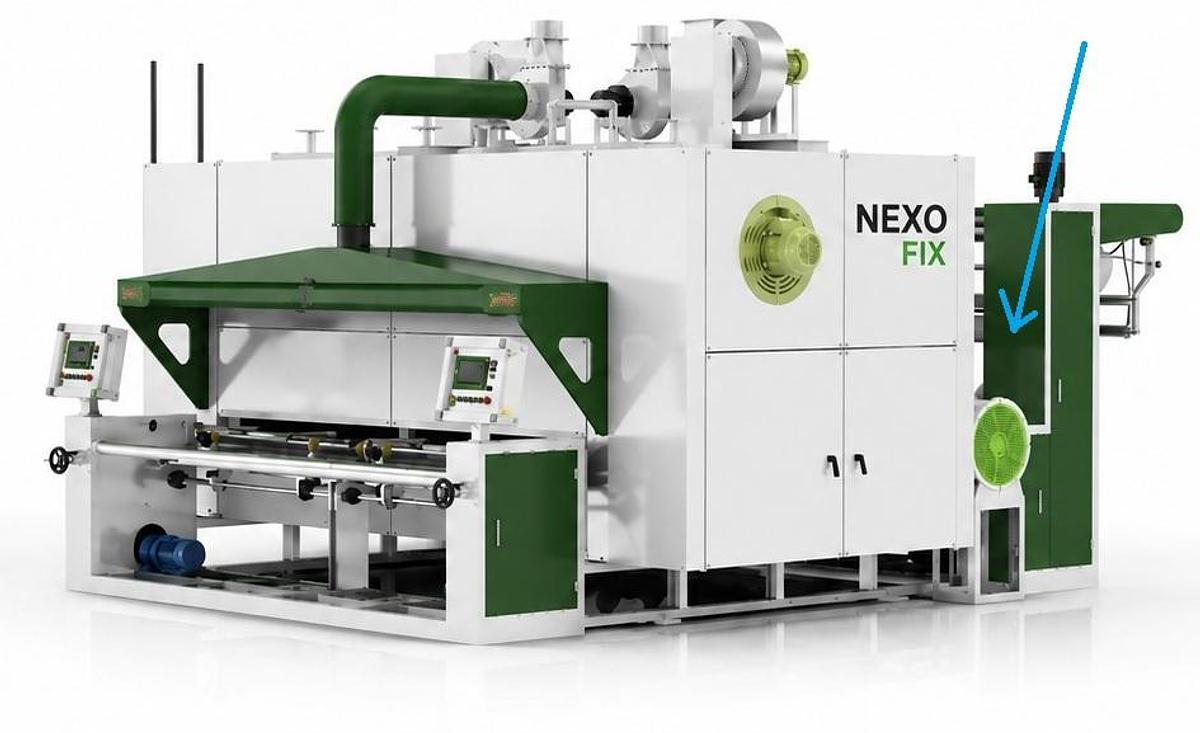

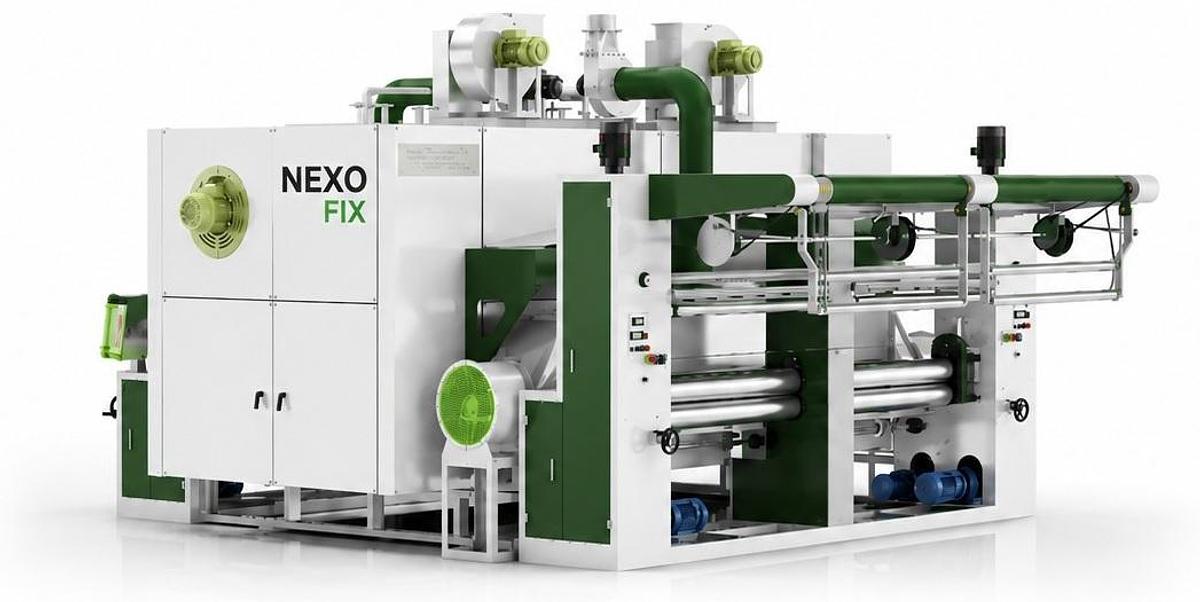

NEXO FIX Heat Setting Machine for Tubular Knitted Fabrics

The NEXO FIX Heat Setting Machine is engineered for the thermal treatment and dimensional stabilization of tubular knitted fabrics, particularly fabrics containing elastane and blended fibers, prior to the dyeing process.

Its dual air chamber and dual-pass fabric system provides uniform heat distribution throughout the process, helping to reduce wrinkles while improving fabric flatness, dimensional stability and overall finishing quality.

Designed to combine performance, precision and process reliability, the machine incorporates independent drive systems and accurate fabric tension control, allowing smooth and consistent operation across different fabric types and production requirements.

Key Features

• Uniform heat setting – Dual independent air chambers ensure efficient and consistent heat distribution.
• Precise fabric control – Front and rear overfeed systems provide accurate tension control and improved fabric stability.
• High performance – Independent drive systems allow precise and flexible adjustment of the main operating functions.
• Efficient cooling – Independent cooling fans provide effective heat exchange after the heat-setting process.
• Automatic temperature control – Operating temperature can be freely adjusted up to 220°C.
• PLC & HMI control – Centralized machine operation through PLC and touchscreen interface.
• Flexible fabric delivery – Available with conventional or precision plaiting systems.

Technical Data

Working width: Dual input, 1,400 mm

Mechanical speed: 0–30 m/min

Maximum temperature: 220°C

Heating system: Gas / Oil

Production capacity: Up to 10 tons/day (24 h)

The NEXO FIX Heat Setting Machine combines advanced textile processing technology with simple operation and precise process control, providing an efficient solution for modern tubular knitted fabric finishing.
